Fiber In / Out No.: 1 / 2 Connector: SC APC Cable OD: 0.9 mm PLC Style: Mini Cable Length: 1 meter / customized Fiber Type: G652D / G655 / G657A1 / G657A2 Cable Jacket: LSZH

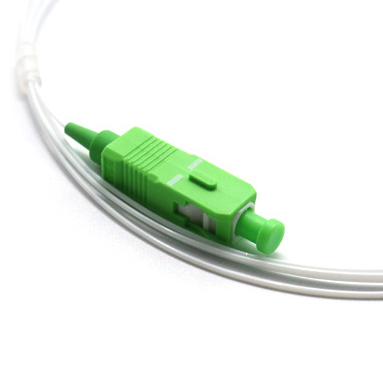

1*2 SC APC PLC Splitter
This type of PLC splitter is having 1 piece of single mode fiber splicing into 2 same fibers with SC APC connectors installed in each end. Fiber's outer diameter must be 0.9 mm. (Only 0.9 mm OD cable could be used in mini style PLC Splitter) Single mode fiber includes G652D, G655, G657A1, and G657A2.
Product Feature
◆ Easy Plug and Pull
◆ Low Insertion Loss
◆ Large Working Temperature Range
Product Parameter
Parameter | Unit | Data |
Insertion Loss | dB | ≤ 4.0 |
Loss Uniformity | dB | ≤ 0.4 |
Polarization Dependent Loss | dB | ≤ 0.2 |
Wavelength Dependent Loss | dB | ≤ 0.3 |
Return Loss | dB | ≥ 60 |
| Directivity | dB | ≥ 55 |
Storage Temperature | °C | -40 ~ +85 |
FAQ
Q1: How can I get a quotation? How long does it take?
A1: You can request an email quotation or email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.
Q2: How long will the goods be delivered after placing order?
A2: Depending on product and order’s quantity, delivery time would be different. PLC Splitter's delivery time is around 1 week depending on order's quantity.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample? Is it free?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
